- Lifting Shoulder Eye Bolt 1-1/4"-7 X 3
منتج #:
36289407

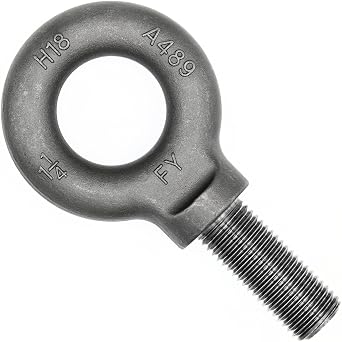

Lifting Shoulder Eye Bolt 1-1/4"-7 X 3
87% من المشترين سيوصون بهذا المنتج لصديق
منتج #:
36289407
OMR 17
تفاصيل السعر
باستثناء رسوم الشحن والجمارك ( سيتم احتساب رسوم الشحن والجمارك عند إتمام الشراء )
*سيتم استيراد جميع العناصر من أمريكا
متوفر فى المخزون
مستورد من متجر USA
كمية:
اطلب الآن واحصل عليه حول الإثنين, سبتمبر 07
معاملة آمنة
تعمل يوباي جاهدة لحماية أمنك وخصوصيتك. يضمن نظام أمان الدفع المتقدم لدينا السرية من خلال تشفير معلوماتك أثناء النقل باستخدام بروتوكولات AES (معايير التشفير المتقدمة) وSSL (طبقة المنافذ الآمنة). تفاصيل الدفع الخاصة بك آمنة بنسبة %100 لأننا لا نشارك تفاصيل الدفع الخاصة بك مع بائعين تابعين لجهات خارجية
أفضل شركائنا اللوجستيين
Industrial Grade Heavy Duty Lifting Eyebolt - Tested to ASTM A489 Specifications
شحن
سريع
استرجاع
مجاني*
تغليف آمن
منتجات أصلية %100
الامتثال لمعيار PCI DSS
حاصل على شهادة ISO 27001
Note: Step Down Voltage Transformer required for using electronics products of أمريكا store (110-120). Recommended power converters اشتري الآن.
مايفيد
Heavy-Duty Design
Constructed from high-strength materials, this eye bolt ensures reliable performance under heavy loads, making it ideal for industrial and construction applications.
Easy Installation
The 1-1/4" threaded shaft simplifies mounting, allowing for quick and efficient installation, reducing downtime and enhancing productivity in various projects.
Versatile Use
Perfect for lifting, hoisting, and securing in diverse settings, this eye bolt caters to a wide range of industries, ensuring maximum flexibility for users.
تفاصيل المنتج

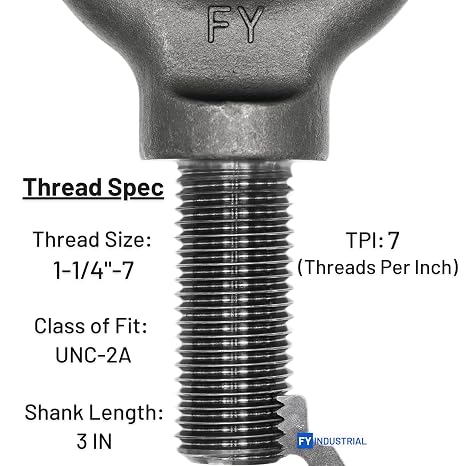

| Thread Size | 1-1/4"-7 (2913.4 cm) |
| Exterior Finish | Lightly Oiled |
| Manufacturer Grade | ISO 9001 |
| Screw Head Style | EYE |
| Color | Self Colored |
| Fastener Type | Eye Bolt |
| Thread Type | Unc-2a |
| Thread Style | Right Hand |
| Item Hardness | industrial grade |
| Head Type | EYE |
| Thread Class | 2A |
| Maximum Shear Strength | 50000 psi |
| Compatible Groove Diameter | 1.2 inches (3 cm) |
| Grade Rating | 15,000 lbs |
| Material Type | Medium Carbon Steel |
| Metal Type | Carbon Steel |
| Finish Types | Lightly Oiled |
| Item Diameter | 1.25 inches (3.2 cm) |
| Size Name | 1-1/4"-7 X 3" (2913.4 cm) |
| Number of Pieces | 1 |
| Fastener Size | 1-1/4"-7 X 3" (2913.4 cm) |
| Thread Coverage | Fully Threaded |

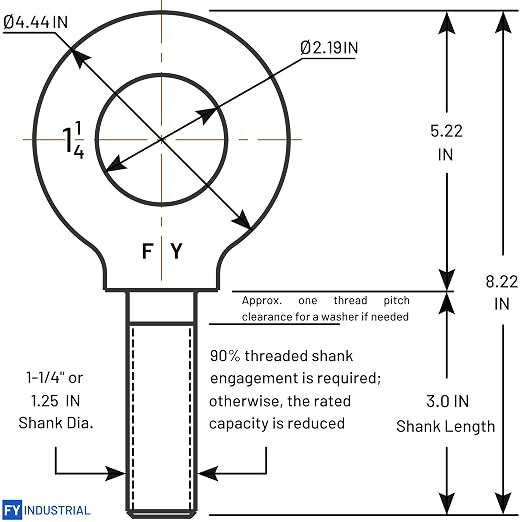

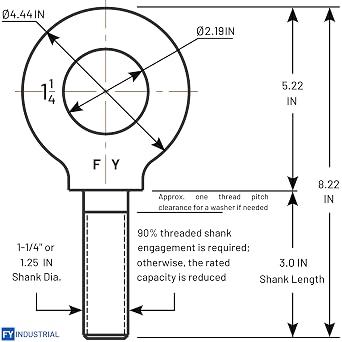

| Item Dimensions | 8.22 x 4.44 x 0.53 inches (20.9 x 11.3 x 1.3 cm) |
| Outside Diameter | 1.25 inches (3.2 cm) |
| Brand | FY |
| UPC | 196852637294 |
| Unit Count | 1 Count |
| Manufacturer | FY Industrial |
| Number Of Items | 1 |
| Model | FY1-1/4"-7 X 3" |
| Part Number | FY1-1/4"-7 X 3" |
| Material | Medium Carbon Steel |
| Head Style | EYE |
| Package Weight | 2.4 Pound |
من يجب أن يشتري؟
-
Construction Workers
Ideal for construction professionals needing reliable lifting points for heavy materials and equipment during projects.
-
Industrial Applications
Perfect for industries needing durable and strong anchorage points for hoisting and rigging operations.
-
Marine Use
Suitable for marine applications where lifting and securing equipment in rough conditions is essential.
-
Light-Duty Needs
Not suitable for users requiring a lightweight solution for minimal lifting tasks or small objects.
وصف المنتج
هل لديك أي استفسار؟ تحدث معنا
أسئلة العملاء & الإجابات
-
سؤال:
What is a Lifting Shoulder Eye Bolt 1-14-7 X 3 used for?
إجابه: A Lifting Shoulder Eye Bolt 1-14-7 X 3 is primarily used for lifting and securing heavy objects. The shoulder design provides additional strength and load distribution, making it suitable for hoisting applications, rigging, and anchoring tasks. This type of eye bolt can be used in warehouses, construction sites, and industrial settings for securely connecting lifting equipment or rigging to machinery or loads. -
سؤال:
What materials are used in the construction of this eye bolt?
إجابه: Typically, Lifting Shoulder Eye Bolts are made from high-strength steel, which provides excellent durability and resistance to bending under heavy loads. Some variants may also be finished with coatings like galvanized or zinc plating to prevent corrosion. This ensures that the eye bolt maintains its structural integrity during prolonged exposure to harsh conditions, making it ideal for outdoor and industrial use. -
سؤال:
How much weight can a Lifting Shoulder Eye Bolt 1-14-7 X 3 lift?
إجابه: The lifting capacity of a Lifting Shoulder Eye Bolt depends on its size and materials. Generally, a high-quality eye bolt like the 1-14-7 X 3 can support significant weight, often ranging from hundreds to thousands of pounds, ensuring safe lifting. It’s crucial to consult the manufacturer's specifications and conduct proper load testing to determine its load limits for specific applications, especially in lifting operations. -
سؤال:
Can I use a Lifting Shoulder Eye Bolt for heavy machinery?
إجابه: Yes, a Lifting Shoulder Eye Bolt is specifically designed to handle heavy loads, making it ideal for use with heavy machinery. The shoulder adds support, ensuring the bolt withstands dynamic loads without bending or shearing. It’s widely used in applications involving cranes, hoists, and other lifting devices, as it provides a secure connection for lifting equipment to heavy machinery. -
سؤال:
Is a lifting eye bolt reusable?
إجابه: A Lifting Shoulder Eye Bolt can be reusable if it remains structurally sound and free from damage during its use. After lifting operations, it’s crucial to inspect the eye bolt for any signs of wear, deformation, or corrosion. Proper maintenance and storage will enhance its lifespan, allowing it to be effectively used in multiple lifting scenarios without compromising safety. -
سؤال:
What are the dimensions of a Lifting Shoulder Eye Bolt 1-14-7 X 3?
إجابه: The dimensions of the Lifting Shoulder Eye Bolt 1-14-7 X 3 typically include a bolt diameter of 1 inch, a length of 14 inches, and a shoulder height that provides a secure anchoring point. These specifications make it suitable for various lifting tasks. Understanding these dimensions helps ensure that it will fit correctly with the equipment and tools in use during lifting operations. -
سؤال:
How do I install a Lifting Shoulder Eye Bolt?
إجابه: To install a Lifting Shoulder Eye Bolt, first, select an appropriate location with sufficient thickness to support the load. Drill a hole matching the eye bolt's diameter, then insert the bolt through the hole and secure it using a nut on the opposite side. Ensure it’s tightened adequately to prevent loosening during use. Proper installation is key to maintaining safety and restoring vertical lift efficiency during operation. -
سؤال:
Can I use lifting eye bolts in marine environments?
إجابه: Yes, some variants of Lifting Shoulder Eye Bolts are suitable for marine environments. For this purpose, selecting eye bolts made from stainless steel or coated with anti-corrosion finishes is recommended, as these materials withstand the harsh conditions of saltwater. These eye bolts can be used in shipbuilding, dock lifting, and underwater applications, providing secure solutions against rust and degradation. -
سؤال:
What is the difference between a shoulder eye bolt and a regular eye bolt?
إجابه: The key difference between a shoulder eye bolt and a regular eye bolt is the shoulder feature on the shoulder eye bolt which helps distribute the load and increases strength during lifting. Regular eye bolts do not have this feature, making them less suitable for heavy lifting. The shoulder design allows for more secure anchoring and is especially beneficial in applications that involve tension and dynamic loading. -
سؤال:
Where can I buy Lifting Shoulder Eye Bolt 1-14-7 X 3?
إجابه: You can purchase a Lifting Shoulder Eye Bolt 1-14-7 X 3 at Ubuy, which offers a wide selection of industrial hardware and lifting tools. Their online platform makes it convenient to find the specific eye bolt you need, with detailed product descriptions to assist in your decision-making process. Ubuy also provides delivery options, ensuring that your order reaches you without hassle.
FY Eyebolts Editorial Review
Lifting Shoulder Eye Bolt 1-1/4"-7 X 3 is made from medium carbon steel, ensuring industrial-grade durability and strength with a maximum shear strength of 50,000 psi. Users have found these eye bolts to be extremely reliable, stating that they work perfectly for various applications, such as securing items on boat trailers. The lightly oiled finish prevents corrosion, making them suitable for outdoor use. Moreover, these eye bolts have been praised for their compatibility with Bridgeport style mills, showcasing their versatility.
مراجعات العملاء وتقييماتهم
857 تقييمات العملاء
-
5 نجمة
87%
-
4 نجمة
8%
-
3 نجمة
4%
-
2 نجمة
0%
-
1 نجمة
1%
أضف تقييم لهذا المنتج
شارك أفكارك مع عملاء آخرين
إيجابيات
- Strong build for heavy-duty use
- Lightly oiled for rust prevention
- Compatible with Bridgeport style mills
- Max shear strength of 50,000 psi
- Industrial grade for enhanced durability
سلبيات
- Installation may require specific tools for tight fit
منصة موثوقة وثقة كاملة للمشتري
MA
Mohammad
مشتري موثّق
“Excellent quality and original too,when ubuy send original things I will appreciate that ,I very satisfied thank you”
23 July 2026 · عبر Trustpilot
CK
Chitra
مشتري موثّق
“The order and delivery progress was communicated very well. Package arrived within the estimated time. Products arrived as expected in good condition.”
22-Jul-26 · عبر Trustpilot
K
kund
مشتري موثّق
“Good supply of products. Safe payment methods, and shipment worldwide! Genuine products.”
23-Jul-26 · عبر Trustpilot
OO
Onesi
مشتري موثّق
“Was my first time buying a product from Ubuy, but I found it so helpful. This is reliable. Gonna place a new order!”
22 July 2026 · عبر Trustpilot
SJ
SAO JOHN
مشتري موثّق
“Ubuy is a great online platform to buy stuff. Reliable, fast delivery time and great value for money. I've been using Ubuy online shopping platform for three years now and will continue to do so.”
23 July 2026 · عبر Trustpilot
الخروج الآمن
شحن عالمي
إسترجاع سهل
منتجات أصلية
تاريخ سعر المنتج
معلومات مهمة
- القيود: بالنسبة للمنتجات التي يتم شحنها دولياً، يُرجى ملاحظة أن أي ضمان من الشركة المصنعة قد لا يكون صالحاً؛ قد لا تتوفر خيارات خدمة الشركة المصنعة؛ قد لا تكون أدلة المنتج والتعليمات وتحذيرات السلامة مكتوبة بلغة بلد المقصد؛ قد لا يتم تصميم المنتجات (والمواد المصاحبة لها) وفقاً لمعايير بلد الوجهة والمواصفات ومتطلبات الملصقات؛ وقد لا تتوافق المنتجات مع الجهد الكهربي المستخدم في بلد الوجهة والمعايير الكهربائية الأخرى (تتطلب استخدام محوّل كهربي أو جهاز تحويل إذا كان ذلك مناسباً). المستلم مسؤول عن ضمان إمكانية استيراد المنتج بشكل قانوني إلى بلد الوجهة. عند الطلب من يوباي أو الشركات التابعة لها، يكون المستلم هو المستورد المسجل ويجب أن يلتزم بجميع القوانين واللوائح الخاصة ببلد الوجهة.
- ليست كل المنتجات المدرجة على يوباي معروضة للبيع، لأن يوباي هو محرك بحث عالمي. المنتجات تخضع للوائح التصدير / التجارة.
OMR 17
اطلب الآن واحصل عليه حول الإثنين, سبتمبر 07
هذا المنتج غير ممنوع في بلدي. (الرجاء الضغط على الرابط أعلاه إذا لم يكن هذا المنتج ممنوعاً في بلدك ، لذلك سيقوم فريقنا بمراجعته والسماح به.)
كمية:
معاملة آمنة
نوفر لك مدفوعات مشفّرة، وحماية متكاملة للمشتري، مع الالتزام بمعايير PCI DSS وشهادة ISO 27001:2022 لضمان أعلى مستويات الأمان في كل عملية شراء.
أفضل شركائنا اللوجستيين
أسرع توصيل عبر الحدود
المميزات والفوائد
- Industrial Grade Heavy Duty Eyebolt
- Forged, Quenched, and Tempered for higher performance
- Manufactured to ASME B18.15 & B30.26 standards
- Tested to ASTM A489 Specifications
- 15,000 lbs Working Load Limit
- Material Certified: Carbon Steel 1035
